2 layout options: 6.25u spacebar and split spacebar
Split spacebar provides an extra key without losing the ability to actuate the spacebar with either hand
Friction fit mount design holds PCB without using screws
2 case options: ABS plastic or aluminum
FR4 plate adds structure while preserving deeper sound
Adjust actuation point from 0.1mm - 4mm in 0.1mm increments
8K polling rate with 0.1252ms latency activated with Tachyon mode* in Wootility
Lekker Tikken magnetic switch
High-density poron foam under the alpha keys between the PCB and switch plate
Per-key RGB backlighting
PET film layer under the switches
Includes both silicone and EPDM foam bottom case sound dampening
1.5mm Double Shot OEM profile PBT keycaps with backlit legends
Screw-in stabilizers
28.6mm front height with 6° typing angle
Want more customization? Check out the 60HE V2 Module

The original Wooting 60HE set a new standard when it launched three years ago. Since then, we’ve refined every part of the design. The 60HE v2 introduces a stronger chip, a durable aluminium housing, and a range of improvements that elevate both the typing feel and sound.

The Wooting 60HE V2 uses Gateron Lekker Tikken Magnetic switches. These switches use magnets and sensors instead of physical contacts to process actuations, creating a much smoother keypress without bounce or chatter. The adjustable actuation point is determined not by location but by distance travelled.

Lekker Tikken Magnetic switch
- adjustable actuation point
- 42g starting force
- 54g bottom out force
- POM stem
- Polycarbonate top housing
- Nylon bottom housing
- closed bottom
- Full 4.0mm total travel
- 21mm spring with a stiffer start and a smoother weight build-up

Includes multiple strap options:
- strap mount cover plate for using the keyboard with no straps
- standard strap mount piece that matches the case color for one standard strap
- stainless steel strap mount piece with a distinct round design and brushed steel finish for an upgraded look

Adjustable Actuation Point: Customize each key with precision using one of 6 actuation points (0.1, 0.5, 1, 2, 3, or 4mm). Set shallow keypresses for instant actions and deeper ones for deliberate engagement, minimizing accidental touches and giving you an edge in both gaming and typing.

Rapid Trigger: Activate or deactivate keys based on how far they travel, not predefined points. This means immediate key reactions—press to activate, release to reset—allowing for faster, more precise keystrokes. In rapid gameplay, this translates to executing complex actions in real-time without delay, giving you a serious advantage during fast-paced sequences.

Dynamic Keystrokes: Thanks to Dynamic Keystrokes (DKS), you can now assign up to 4 distinct actions per key based on press depth. A light press moves your character, a deeper press makes them run, and releasing the key enables additional commands. This layered control lets you execute multiple moves with ease, streamlining gameplay while enhancing control and speed, making your reactions quicker and more precise.

Controller Input: Bringing game controller-like precision to your keyboard. This mode enables variable inputs instead of the usual on/off signals, letting you achieve more fluid and dynamic control. With each keypress, the keyboard detects how far you press, translating it into different speeds and intensities. Enjoy nuanced control and heightened responsiveness in racing games, sports simulations, and more.

Rappy Snappy: Choose two keys that will never be active at the same time. The key pressed deeper is the one that stays active.

Snappy Tappy (SOCD): By default Snappy Tappy activates last input priority, meaning that when two selected keys are pressed at the same time, the keyboard activates only the key pressed last while deactivating the other. With Snappy Tappy, you can pick the following prioritization options:

Last Input Priority: Prioritize the key that was pressed last (default).
Absolute Priority (X key): Always prioritize the X key.
Absolute Priority (Y key): Always prioritize the Y key.
Neutral: When both keys are pressed, neither is registered.

Mod Tap: Bind two different actions to a single key based on your press behavior. Hold the key for Action A, or tap the key for Action B. You can manually dial-in the desired hold duration per key.

Toggle Key: The toggle key feature lets you turn any action into a “press once to hold” key. Instead of keeping a key pressed, you press once to activate, and press again to release. Racing gamers can use this for a steady throttle or braking, while MMO adventurers can stroll endlessly through their world. There are also productivity use cases for this feature. The toggle key feature can act as a hands-free helper, keeping push-to-talk active, holding modifier keys for shortcuts, or running repetitive commands.

Please note:

*Tachyon mode lowers the RGB brightness and turns off RGB effects to reserve power for scanning for key actuation. A USB 2.0 or higher port is required to operate in this mode.
ABS case has an internal aluminum plate on bottom case to reinforce the structure as well as a silicone wing that can be attached to the left side of the case.

Includes:
- switch and keycap puller
- module puller
- 3* spare Lekker Tikken switches
- 1* Wooting strap
- 1* stainless steel strap attachment piece
- 1* decorative strap mount cover plate
- 1* USB-C to USB-C 2.0 nylon braided cable
- 1* USB-C to USB-A adapter
- 3* spare strap attachment screws (M2)
- 4* spare PCBA screws (M2)
- 2* spare silicone plugs

60HE V2

Wooting 60HE V2 Magnetic 8K Keyboard PCB Module

Wooting 60HE V2 Magnetic 8K Keyboard

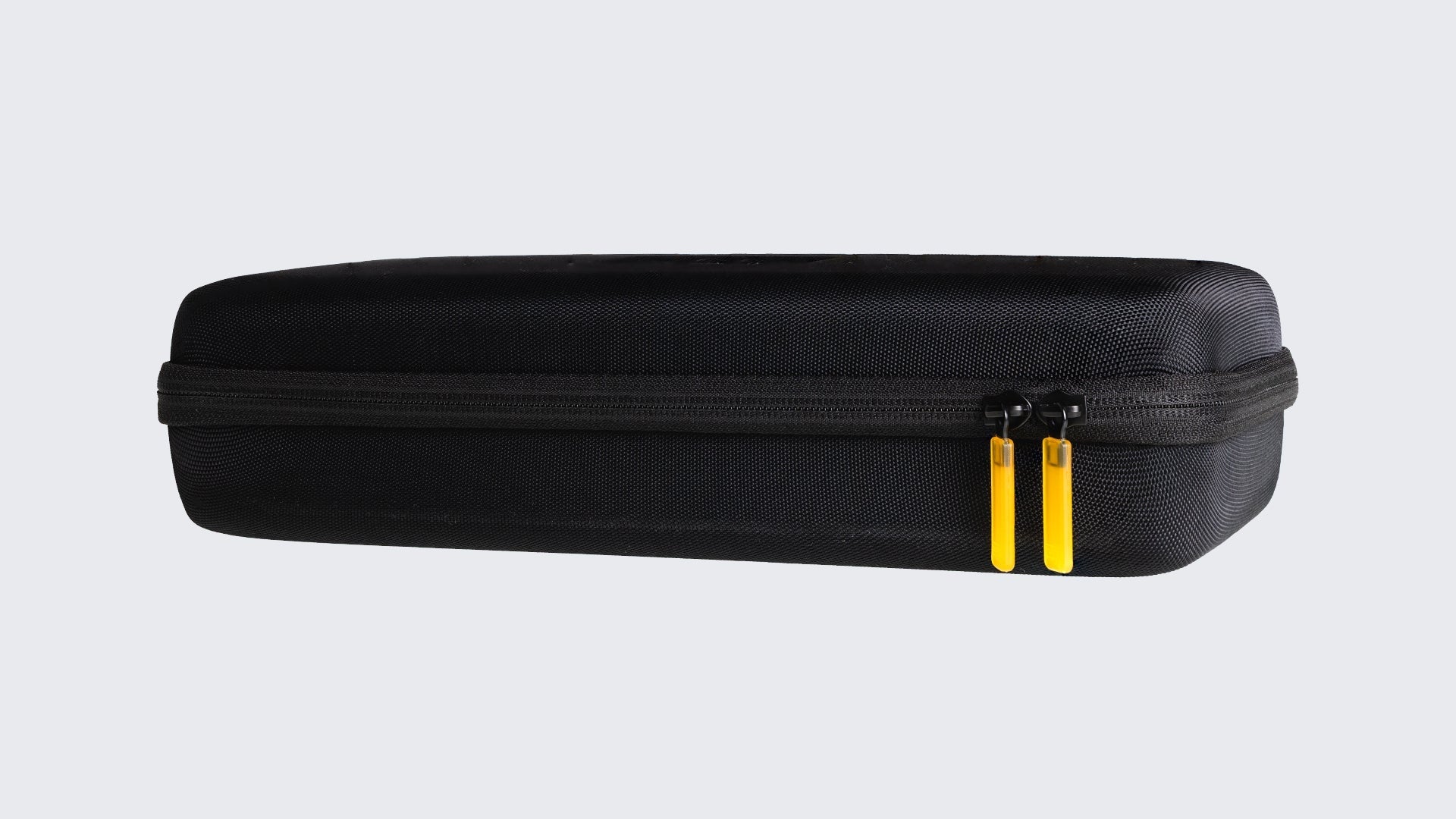

Wooting 60HE V2 Keyboard Travel Carrying Case
